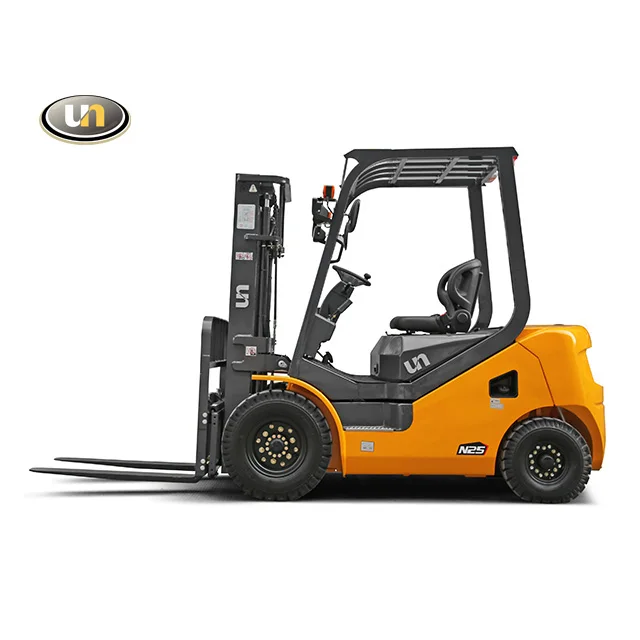

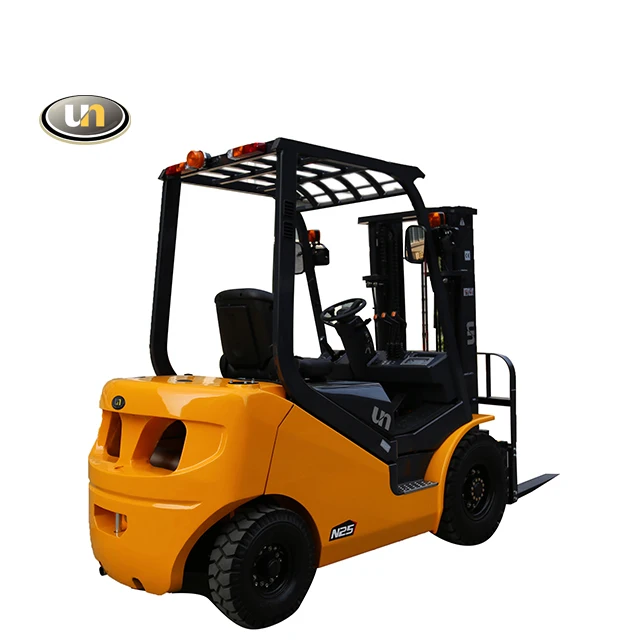

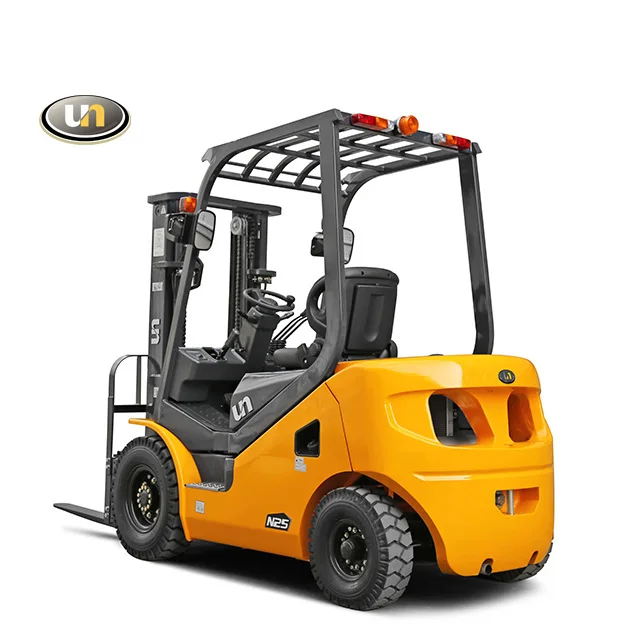

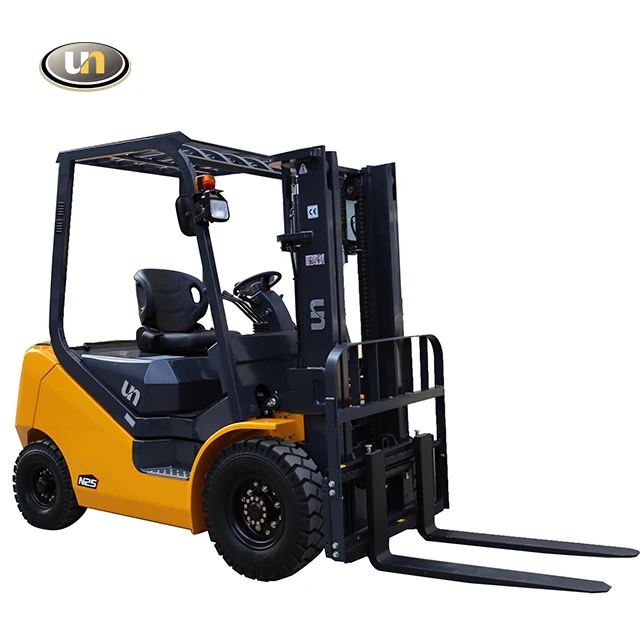

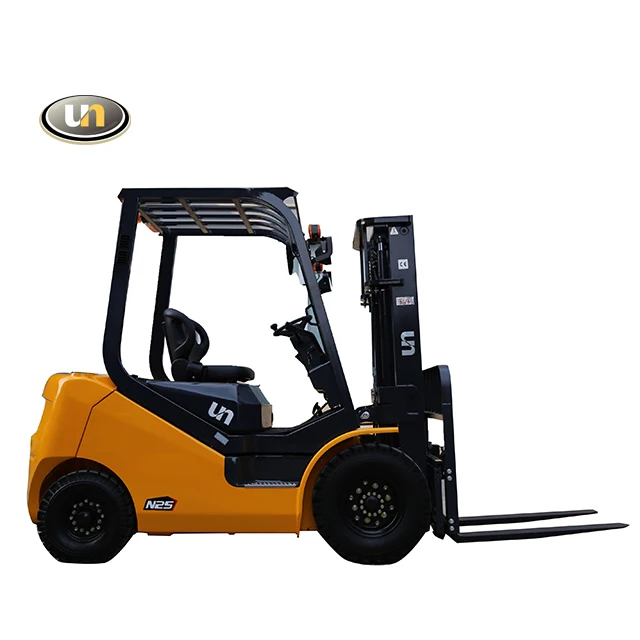

New Wide View Mast 3 m ISUZU Engine Warehouse Portable 2.5 T Diesel Forklift

FOB Reference Price:Get Latest Price
US $8,000-15,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
300 Piece/Pieces per Year
Port:
FOB Shanghai / Ningbo
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
UN FORKLIFT
Model Number:
FD18T-I Forklift
Type:
Powered Pallet Truck
Power Souce:
Diesel Engine
Rated Loading Capacity:
1800kg
Max. Lifting Height:
4055mm
Min. Lifting Height:
2025mm
Fork Length:
1070mm
Fork Width:
120mm
Overall Dimensions:
2773*1225*2235mm
Certification:
ISO, CE, EPA
After-sales Service Provided:
Overseas service center available
Keywords:
2.5 T Diesel Forklift

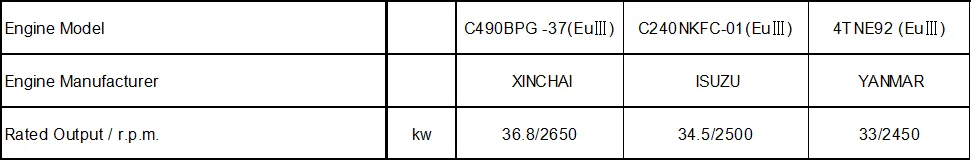

Available Engine:
ISUZU/YANMAR/MITSUBISHI/XINCHAI
Load Centre:
500mm
Power type:
Diesel Forklift
Fork size:
1070*120*40mm
Wheelbase:
1410mm
Product Name:
Diesel Engine Forklift
Tilting Angle(F&R):
6°/12°
Travel Speed:
14.5 km/h
Lifting Speed:
560 mm/s
Packaging & Delivery
Packaging Details
Nude Packing.
20GP Container: 4 Units
Delivery Time
35 days after payment confirmation

New Wide View Mast 3 m ISUZU Engine Warehouse Portable 2.5 T Diesel 2.5 T Diesel Forklift

Welcome to>> Zhejiang UN 2.5 T Diesel Forklift Co., Ltd



Product Description

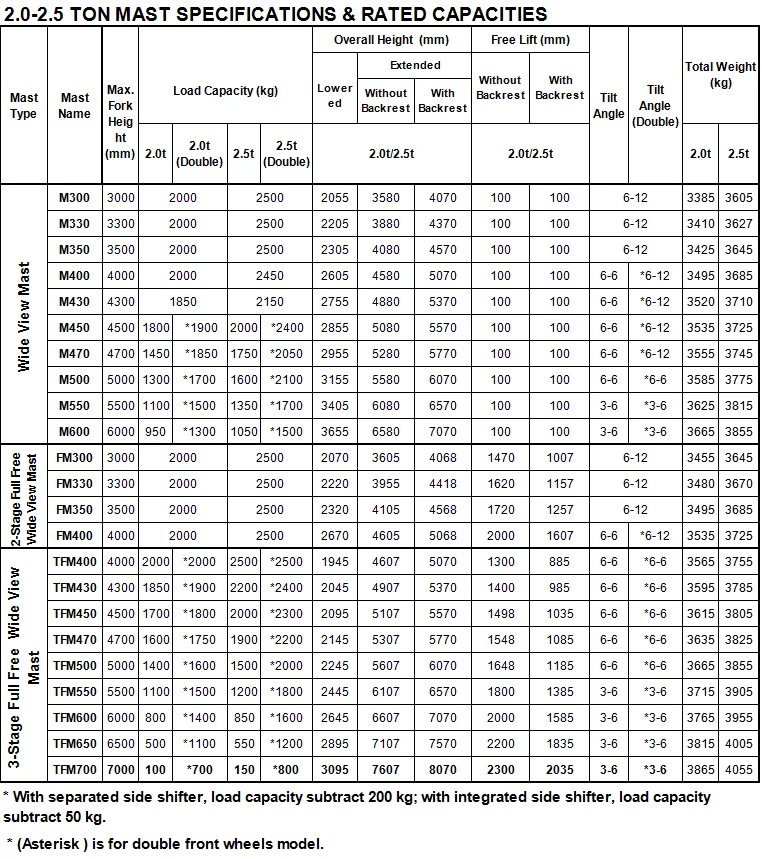

MAIN SPECIFICATIONS

General

Model

UN

FD25T-FN

Power Type



Diesel

Rated Load Capacity

Q(kg)

2500

Load Centre

C(mm)

500

 Characteristics

Rated Lift Height

H3(mm)

3000

Free Lift Height

H2(mm)

100

Fork Size (L×W×T)

mm

1070×120×40

Mast Tilt Angle (F/R, α°/β°)

deg

6°/12°

Fork Overhang (Wheel Center to Fork Face)

X1(mm)

479

Rear Overhang

X2(mm)

520

Ground Clearance (Bottom of Mast)

H7(mm)

130

Length to Face of Fork (Without Fork)

L1(mm)

2660

Overall Width

B1(mm)

1150

Mast Lowered Height

H1(mm)

2055

Mast Extended Height (With Backrest)

H4(mm)

4070

Overhead Guard Height

H5(mm)

2215

Turning Radius (Outside)

Wa(mm)

2365

Min.Aisle width for pallets

Ast(mm)

4120

Weight

Total Weight

kg

3605

Power

Battery

V/Ah

12/90

Transmission Type



Powershift


Company Information



ZHEJIANG UN FORKLIFT was established in 1978. Backed by over 35years of experience, UN FORKLIFT grows one of the most well-known global material handing equipment brands combining research, manufacturing, sales and service. UN FORKLIFT has developed a wide range of dealer network including Europe, North America, South America, Southeast Asia, Middle East, and its sales and service station extend to more than 130 countries and regions. UN FORKLIFT made a rapid progress in the past years. The newly established workshop has the production capacity of 15000 units/year. The promising strategy together with the advanced technology attracts a number of professionals working for the development of UN FORKLIFT. With all these achievements, we are proud of UN FORKLIFT and say we are forklift!



We are the one of topest forklift truck manufactures with 133,000 square meters in China, it has more than 35 years with Europe technology of forklift manufacturing experiences.



The universal UN-series forklift with CE certificate are offered like:



Diesel forklift truck(1.5-10.0t)

Gasoline/PLG forklift truck(1.5-5.0t)

Electric forklift truck: 3-wheel(1.3-2.0t), 4-wheel(1.5-5.0t)

Warehouse Equipment: reach truck(stand-on), reach truck(sit-in), double deep reach truck, VNA, electric stacker, electric pallet truck



How to choose the most suitable UN forklift trucks?



1. Power Type
2. Load Capacity
3. Mast Size and Height
4. Side Shifter, tyre and etc.



Packaging & Shipping

Certifications

FAQ

 1.What's the Certificate do you have?

UN workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. Epa approval can be available if needed.


2. Can you customize and design as the clients' requirement?
UN will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.


3. How long is the warranty of your products?
All of products are with 1 year / 2000 working  hours subject to the first.


4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.


5. What's the payment terms do you accept?

Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY.


6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.
